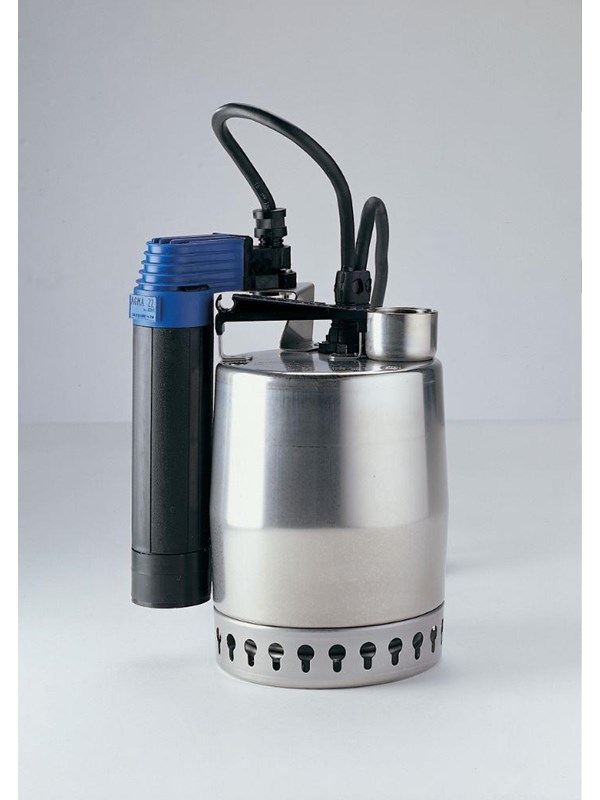

Grundfos unilift kp250-av-1 1x220-230v 50hz 10m sch

Unilift KP 250 AV 1Submersible drainage pumpVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase canned motor in insulationclass F with thermal overload protection. The pump is fitted with suction strainer and acarrying handle and is supplied with a 10 mmains cable and vertical level switch for automaticstart and stop.The impeller is a semi-open impeller for 10 mm freepassage suitable for pumping groundwater,surface water, rain water and similar liquids.The pump has a double shaft seal consisting of twolip seals with grease in-between.The pump has an outer casing ensuring continuouscooling of the motor by the pumped liquid. The rotorshaft operates in two maintenance-free carbonbearings cooled by the pumped liquidThe motor is filled with a non-toxic motor liquid. Liquid:Liquid temperature range:0 .. 50 °CTechnical:Maximum particle size:10 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4031Impeller:AISI 304Installation:Pump outlet:Rp 1 1/4Maximum installation depth:10 mElectrical data:Power input - P1:480 WRated voltage:1 x 220-230 VRated current:2.3 ACapacitor size - run:8 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight:7 kgGross weight:7.8 kgShipping volume:0.013 m3
